SECURY S-Bolt Inactive
With Shoot Bolt for double Doors
With Shoot Bolt for double Doors
- 2-point locking system for maximum security and protection against warping of the door panels
- Heavy duty mortise construction with reinforced lever return spring system
- 90° locking with thumb-turn
- Lever controlled engaging and releasing the shoot bolts
- Two shoot bolts 1” (25mm) projection offer deeper penetration into the head and sill resulting in higher security and outstanding performance
- Handle height 36″ (915mm)
- 8mm spindle
- 92mm centres (spindle to cylinder)
- 16mm stainless steel faceplate
- Same hardware groove detail throughout our entire door lock program (router bits available)
- Used with shoot bolt extensions 6-39572-XX-0-8B
- Used with latch and deadbolt blockers K-19658-XX-0-6
Brochures
Catalogs
Certificates
Instructions
Product Selection
Technical Drawings
SECURY S-Bolt Active
With Latch, Deadbolt and Shoot Bolt for Single/Double doors
Trim Kit – ROMANCE – 40mm Plates
Handle sets with US-cylinder
Trim Kit – VIKING – 40mm Plates
Handle sets with US-cylinder
Trim Kit – TORINO – 30mm Plates
Handle sets with US-cylinder
Trim Kit – ALLEGRO – 30mm Plates
Handle sets with US-cylinder
Trim Kit – VENICE – 45mm Plates
Handle sets with US-cylinder
Trim Kit – ROMA – 55mm Plates
Handle sets with US-cylinder
Trim Kit – BERLIN – 65mm Plates
Handle sets with US-cylinder

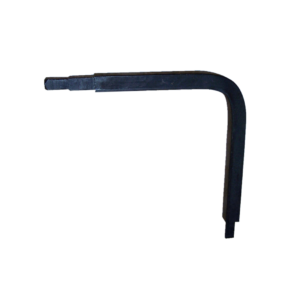

Construction Key
Accessories for construction

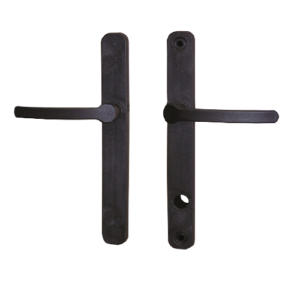

Construction Handle Set
